Applications

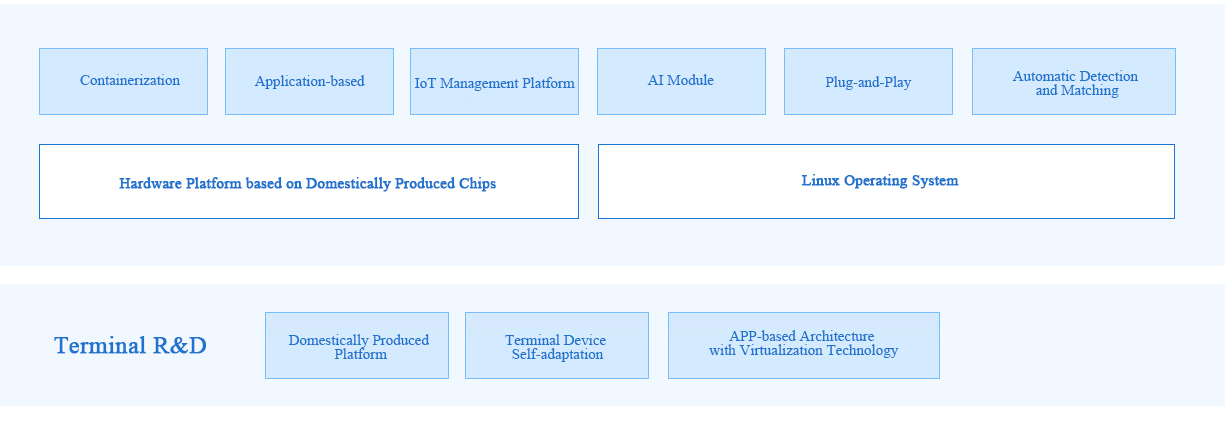

The product is developed based on the Linux operating system and containerized architecture, utilizing virtualization technology to achieve application software decoupling and APP-based expansion, enabling a cloud-edge-end communication architecture. It supports multiple communication protocols, features rapid active and reactive power regulation, includes conventional protection trip functions, and supports microgrid control, achieving comprehensive management of photovoltaic-storage-charging-flexible devices.

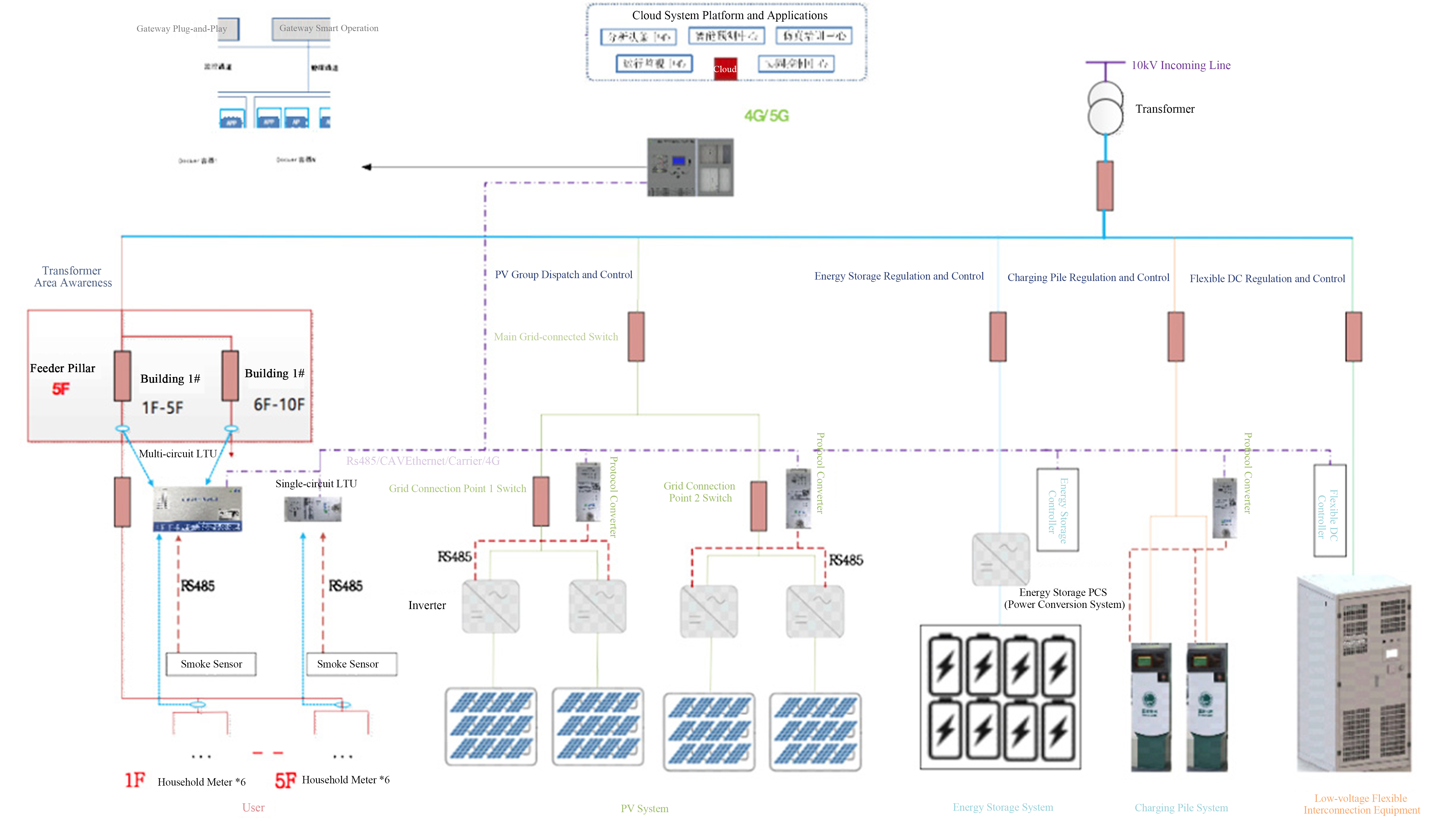

System Composition

Functional Features

It offers precise AGC/AVC regulation functions, providing more real-time adjustments and smoother curves.
It supports access to multiple master stations, including distribution network Zone I master stations, Zone IV master stations, distribution IoT master stations, dispatch master stations, and marketing master stations.
It can simultaneously connect to multiple master station systems, including distribution network master stations, dispatch master stations, and new energy master stations.
It features local microgrid control strategies, supporting single-district reverse power automatic regulation, voltage management, and multi-transformer area coordination microgrid control strategies.
It adopts a non-real-time system combined with a real-time MCU architecture to achieve conventional protection functions, resulting in more economical hardware. It supports multiple protection trip functions such as overcurrent stage III, overvoltage, anti-islanding, and reverse power
It employs virtualized container technology to achieve software App-based expansion, making operations and maintenance more convenient and flexible through associated maintenance tools.

Cases

Xixian distribution room monitoring

With many distribution rooms in the jurisdiction of Xixian being taken over by the power supply company, Xixian Company initiated a pilot application for distribution room monitoring. By installing the E9361 series terminals, functions such as sensor access, primary system monitoring, and video alarms for distribution rooms were achieved. The pilot provided a model support for the progressive development of Xixian Company's distribution rooms towards "smart", "digital", and "intelligent" transformation. Subsequently, Xixian Company will gradually carry out access upgrades for thousands of distribution rooms it has taken over.

Yantai Dukou Village low-voltage microgrid demonstration area

The "photovoltaic-storage-charging-flexible·coordinated interaction" low-voltage distribution network demonstration project in Fushan Dukou Village was officially completed on July 20, 2024, and entered operational status after final debugging on July 26. Addressing issues such as difficult photovoltaic consumption, local overvoltage, unbalanced transformer load rate, challenges in new energy vehicle charging, and low reliability of low-voltage power supply in the transformer area, the E9361-C0 distributed power comprehensive control's overvoltage management strategy, photovoltaic-storage-charging-flexible coordinated control strategy, and fault outage strategy effectively resolved the problems of overvoltage and low voltage qualification rate in the transformer area. The number of overvoltage households decreased from an average of 500 per day to 50, and the voltage qualification rate increased from 88% to 98%.

Edge cluster master station grid connection

The E9361-C0 Distributed Power Integrated Control Terminal has been applied in the Yunnan Power Dispatch's scientific project "Key Technologies for Large-scale Distributed New Energy Integration into Distribution Network Operation," with hundreds of terminals deployed in Yiliang County, Kunming. The terminal communicates with the Southern Power Grid dispatch master station via a plug-and-play Cloud-Edge Fusion Protocol (CEP protocol), achieving remote signaling, telemetry, remote control, and remote adjustment (four-remote communication) functions for grid connection points and distributed power sources on the service channel. Through the precise regulation algorithm of AGC/AVC, it can quickly respond to the master station's group adjustment and group control commands, reducing power backfeed issues and improving power supply reliability. On the management channel, remote operation and maintenance functions for the terminal are achieved through container management, APP management, and file management.

New energy station grid connection

The intelligent dispatch command system of Hebei Jizhong New Energy Technology Co., Ltd. has integrated 15 substations, 64 distributed photovoltaic power stations, and 10MW electrochemical energy storage. By installing the E9361-C0 Distributed Power Integrated Control Terminal at the station, the "Four Capabilities" connectivity has been achieved. The terminal supports multiple communication protocols, including IEC101, IEC103, IEC104, Modbus, DL/T1376.2, DL/T645, and DL/T698, enabling the integration of devices such as measurement and control units, comprehensive management units, meters, anti-islanding protection, and micro-meteorological sensors. This provides panoramic perception of grid connection points, inverters, energy storage, and other terminal equipment at the station.
